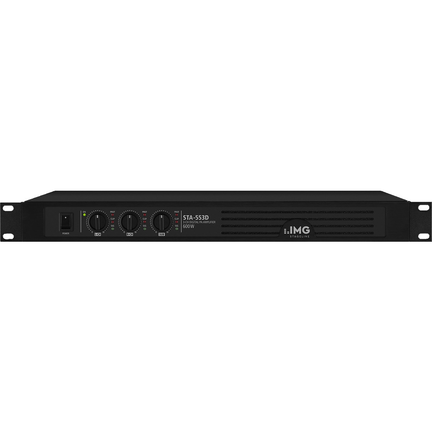

STA-553D PA-forstærker 3-kanals
2.895,00 kr.
Varen er på lager levering 1-2 hverdage.
3-kanals class D PA-forstærker
- Justerbar delefrekvens for sat og sub
- 3 x volumenkontrol
- Temperaturstyret blæser
- Beskyttelseskredsløb med LED-indikator for beskyttelse mod kortslutning, overophedning og overspænding ved udgangene
- Hver kanal har LED-indikator for overbelastning (clip) og signal
TEKNISKE DATA: Peak output power 600 W Power rating 550 W Power rating at 2 Ω - Power rating at 4 Ω 2 x 150 W (satellite) 1 x 250 W (subwoofer)
Power rating at 8 Ω 2 x 100 W (satellite) 1 x 160 W (subwoofer)
Power rating at 16 Ω - Power rating at 100 V - Power rating with 4 Ω bridged operation - Power rating with 8 Ω bridged operation - Output impedance - Channels 3 Zones - Inputs 1.5 V/14 kΩ Attenuation factor - Frequency range 20-20,000 Hz Crossover network 12 db/oct. Crossover frequency 50-250 Hz Integrated limiter no Equalizer bass - Equalizer midrange - Equalizer treble - S/N ratio > 96 dB Crosstalk attenuation > 70 dB THD < 0.05% Mains voltage ∼ 230 V Mains frequency 50 Hz Power consumption, operation 800 VA Power consumption, standby - Standby current - Operating voltage (possible alternative) - Power supply (possible alternative) - Admiss. ambient temp. 0-40 °C Width 482 mm Height 52 mm Depth 290 mm Rack spaces, RS 1 Weight 4.5 kg Connections 3 x plug-in screw terminal
