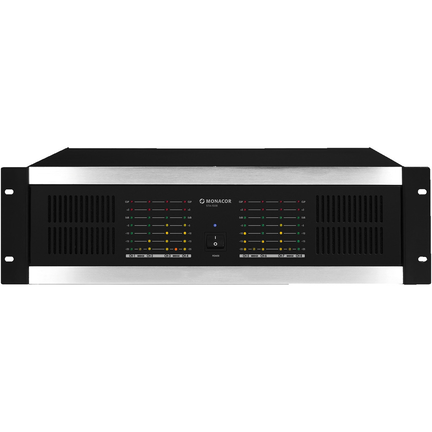

STA-1508 Forstærker 8x160Wrms
6.495,00 kr.
Varenummer: 24.4300
Varen er på lager levering 1-2 hverdage.
8 kanals PA multikanal-forstærker,
med indbygget limiter.
- Balancerede indgange
- High-pass filter og low-pass filter pr. kanal
- Volumenkontrol pr. kanal på bagside, med indstillingsskrue
- Mulighed for brokobling ved 8 Ω drift
- LED VU-meter og LED-indikator pr. kanal for overbelastning (clip)
- Soft start
- Ground lift
- Højttalerforsinkelse
- Ventilatorkøling
- Beskyttet mod kortslutning, overophedning og overspænding ved udgangene
| TEKNISKE DATA: | |
| Peak output power | 1,800 W |
| Power rating | 1,280 W |
| Power rating at 2 Ω | - |
| Power rating at 4 Ω | 8 x 160 W |
| Power rating at 8 Ω | 8 x 100 W |
| Power rating at 16 Ω | - |
| Power rating at 100 V | - |
| Power rating with 4 Ω bridged operation | - |
| Power rating with 8 Ω bridged operation | 4 x 320 W |
| Output impedance | - |
| Channels | 8 |
| Zones | - |
| Inputs | 0.7 V/20 kΩ |
| Attenuation factor | - |
| Frequency range | 12-20,000 Hz |
| Crossover network | yes |
| Crossover frequency | 240 Hz |
| Integrated limiter | yes |
| Equalizer bass | - |
| Equalizer midrange | - |
| Equalizer treble | - |
| S/N ratio | > 80 dB |
| Crosstalk attenuation | > 60 dB |
| THD | < 0.1% |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 2,400 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | - |
| Power supply (possible alternative) | - |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 132 mm |
| Depth | 310 mm |
| Rack spaces, RS | 3 |
| Weight | 16.6 kg |
| Connections | 8 x 3-pole XLR, bal. 8 x screw terminal |
