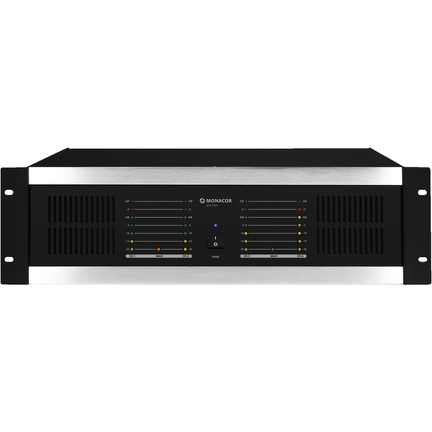

STA-1504 Forstærker 4x160Wrms

3.595,00 kr.
Varenummer: 24.4280

Varen er på lager levering 1-2 hverdage.

4 kanals PA multikanal-forstærker,



med indbygget limiter.




1
+
Tilføj til kurv
  • Balancerede indgange
  • High-pass filter og low-pass filter pr. kanal
  • Volumenkontrol pr. kanal på bagside, med indstillingsskrue
  • Mulighed for brokobling ved 8 Ω drift
  • LED VU-meter og LED-indikator pr. kanal for overbelastning (clip)
  • Soft start
  • Ground lift
  • Højttalerforsinkelse
  • Ventilatorkøling
  • Beskyttet mod kortslutning, overophedning og overspænding ved udgangene
  • EKNISKE DATA:
    Peak output power900 W
    Power rating640 W
    Power rating at 2 Ω-
    Power rating at 4 Ω4 x 160 W
    Power rating at 8 Ω4 x 100 W
    Power rating at 16 Ω-
    Power rating at 100 V-
    Power rating with 4 Ω bridged operation-
    Power rating with 8 Ω bridged operation2 x 320 W
    Output impedance-
    Channels4
    Zones-
    Inputs0.7 V/20 kΩ
    Attenuation factor-
    Frequency range12-20,000 Hz
    Crossover networkyes
    Crossover frequency240 Hz
    Integrated limiteryes
    Equalizer bass-
    Equalizer midrange-
    Equalizer treble-
    S/N ratio> 80 dB
    Crosstalk attenuation> 60 dB
    THD< 0.1%
    Mains voltage∼ 230 V
    Mains frequency50 Hz
    Power consumption, operation1,200 VA
    Power consumption, standby-
    Standby current-
    Operating voltage (possible alternative)-
    Power supply (possible alternative)-
    Admiss. ambient temp.0-40 °C
    Width482 mm
    Height132 mm
    Depth310 mm
    Rack spaces, RS3
    Weight14 kg
    Connections4 x 3-pole XLR, bal.

    4 x screw terminal
