RCF F 10 XR

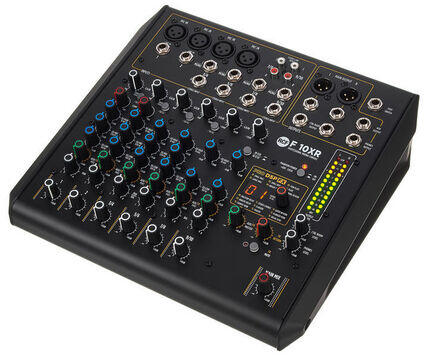

RCF  F 10 XR Live mixer

F 10XR er en 10 kanals live mixer.
4 mikrofon pream-indgange, 4 mono line-indgange, samt 4 stereoinput-indgange.
Mulighed for optagelse eller afspilning via USB-port.
Balancerede udgange (Stereo XLR + TRS) og 6 enkeltkontrolkompressorer.
Monokanalerne er forsynet med 3-bånds EQ, med valgbar midfrekvens og 3-bånd til stereokanaler.
Mixeren har 16 PRO DSP interne forudindstillinger, to stereoudgangs-busser og 4 aux-sendinger (2 præ, 1 for / post, 1 indlæg).

-4 Mic preamp indgange, 2 mono Line-indgange
-4 Stereo line-indgange
-PRO DSP FX med 16 forudindstillinger
-Stereo-optagelse og afspilning via USB-port
-2 enkeltkontrolkompressorer
-Balanceret hovedudgang +28 dB (Stereo XLR + TRS)
-1 Aux/FX (post)
-Ekstern universel strømforsyning
-Designet og konstrueret i Italien

TECHNICAL SPECIFICATIONS
Electronic specifications Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out <0,02
Inputs Mic: 4
Gain Range: 0 dB ÷ -50 dB
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power +48V: Yes
Mono Line: 2
Gain Selection: 20 dB ÷ -30 dB
Line Input Impedance: 21 kohm
Stereo Line: 4
Gain Selection: 20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm) 15 kohm
Outputs Main MIX: 1
Control Room: Yes
FX Send: 1
AUX Output: 1
Phones: 1
Outputs specifications Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Phones Out impedance (ohm): 150 ohm
Compressors RCF Compressors: n° 2 Single Control compressors on
channels 1&2
EQ Input Channels EQ: 2 Shelving / 1 Generic
Description: High:+/-15 dB @ 10 kHz Shelving
Mid:+/-15 dB @ 1,250 kHz Bell
Low:+/-15 dB @ 100 Hz Shelving
Auxiliary sends FX POST: 1
Internal Effects Send Effects: 1
USB audio Type: B
Play trk: 2
Rec trk: 2
Supported Sample Rate: 44.1, 48.0
Other features Footswitch: Yes
Electrical specifications Power supply: External
Voltage requirements: 100 V - 240 V
Power consumption (MAX): 18 W
Standard compliance CE marking: Yes
Physical specifications Cabinet/Case Material: Metal
Color: Black

Size Height: 82 mm
Width: 294 mm
Depth: 275 mm
Weight: 2.8 kg

Shipping informations Package Height: 130 mm
Package Width: 400 mm
Package Depth: 345 mm
Package Weight: 3.8 kg
