E16 i studie-kvalitet, 54 dB gain på Mic-preamps med kombinationsstik
E16 i studie-kvalitet, 54 dB gain på Mic-preamps med kombinationsstik. To line indgange kan skiftes til Hi-Z input. Indput sektionen indeholder også tre stereo input og stereo-retur. Input kanaler fra 1 til 4 har single control kompressor. De 12 monokanaler er forsynet med 3-bånds EQ'er, med sweep på mellemtone Stereoinput

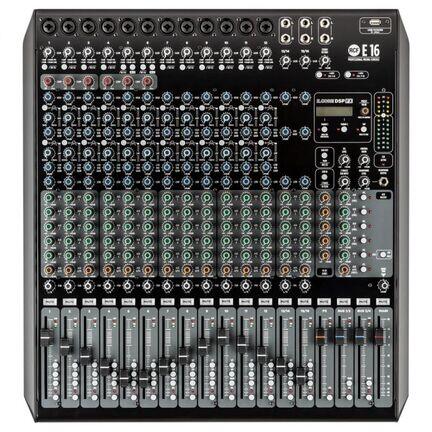

CF E16: 16 kanals mixer med effekt-processor
E16 i studie-kvalitet, 54 dB gain på Mic-preamps med
kombinationsstik.
To line indgange kan skiftes til Hi-Z input.
Input-sektionen indeholder også tre stereo-input og stereo-retur.
Input-kanaler
fra 1 til 4 har Single Control kompressor.
De 12 monokanaler er forsynet
med trebånds-EQ'er, med sweep på mellemtone
Stereo-input kanalerne er forsynet
med en trebånds-EQ.
-12 Mic/line IN, 2 stereo line IN
-1 Stereo return input
-6 single-control dynamic compressors (ch.1 - ch.6)
-4 Band semiparametric EQ
-3 Band EQ on stereo inputs
-6 Aux sends per channel
-100 mm progressive faders with dust cover
-2 Stereo groups
-32-Bit floating-point Z.CORE DSP effects section
Auxiliary sends
AUX: 4 PRE / 1 PRE/POST
FX POST: 1
Compressors
RCF Compressors: 6 Single Control
Electrical specifications
Power consumption (W): 70 W
Power supply:, Internal
Voltage requirements: 90 V - 240 V
Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out (% A-Weighted): <0.002
EQ
High
Shelf at 10kHz, +/-15dBMid High, Freq. 1kHz-15kHz, Wide/Narrow Q bell
Mid Low, Freq. 100Hz-1,5kHz, Wide/Narrow Q bellLow Shelf at 100Hz,
+/-15dB
Input Channels EQ:2 Semi Parametric / 2 Shelving
Inputs
Gain Range: 6 dB ÷ 60 dB
Gain Selection: -24 dB ÷ 30 dB
HI-Z Line Inputs Impedance (MOhm): 1 Mohm
HI-Z Line Inputs: 2
Input Noise Level (dBu A-Weighted): 120 dBu A-Weighted
Mic Inputs Impedance (KOhm): 2 kohm
Line: 12
Line Input Impedance (kOhm): 60 kohm
Low Cut: 80 Hz
Mic: 12
Phantom Power +48V: Yes
Stereo Line: 2
Stereo Return: 1
Gain Selection: -15 dB ÷ 15 dB
Gain Selection: 0 dB ÷ 10 dB
Stereo Line Input Impedence: 60 kohm
Stereo Return Input Impedence: 60 kohm
Internal Effects
Send Effects: 1
Other features
Footswitch: Yes
Outputs
2 Track: Yes
AUX output: 6
AUX Send: 5
Control Room: Yes
FX Send: 1
Group Out: 4
Main MIX: 1
Phones: 1
Outputs specifications
Aux Out Impedance (Ohm): 600 ohm
Aux Out Level (dBu): 22 dBu
Group Out Level (dBu): 22 dBu
Main Out Level (dBu): 22 dBu
Phones Out impedance (Ohm): 150 ohm
Physical specifications
Cabinet/Case Material: Metal
Size
Depth: 550 mm
Height: 135 mm
Weight: 10.3 kg
Width: 510 mm
