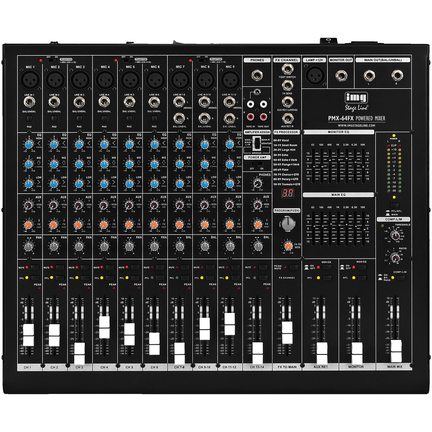

Powermixer, 2 x 475 W, 4 Ω, med digital forstærker og DSP-effektenhed.
| TEKNISKE DATA: | |
| No. of channels | 10 |
| No. of inputs | 19 |
| Mic input | 1 mV, bal., 9 x 3-pole XLR |
| Line input | 75 mV, bal. (stereo), 3 x 6.3 mm jack L/R 10 mV, bal. (mono), 6 x 6.3 mm jack |
| CD input | - |
| Phono input | - |
| Tape (play) | 100 mV, 1 x RCA L/R |
| Aux input | 80 mV, bal., 1 x 6.3 mm jack |
| Insert input | - |
| Effect return | - |
| Master output | 1.5 V, bal., 1 x 6.3 mm jack L/R |
| Record output | - |
| Monitor output | - |
| Booth output | - |
| Aux output | 10 V, 1 x 6.3 mm jack |
| Insert output | - |
| Effect send | - |
| Control room | 10 V, mono (monitor), 1 x 6.3 mm jack |
| Tape (rec) | 800 mV, 1 x RCA L/R |
| Headphones | ? 8 Ω, 1 x 6.3 mm jack |
| Gooseneck lamp | - |
| WiFi | - |
| USB | - |
| Bluetooth | - |
| Frequency range | 20-20,000 Hz |
| THD | < 0.04% |
| S/N ratio | 89 dB |
| Crosstalk | -63 dB |
| Equalizer bass | ±15 dB/80 Hz |
| Equalizer midrange | ±12 dB/2.5 kHz |
| Equalizer treble | ±15 dB/12 kHz |
| equalizer | ±15 dB, 63/160/400 Hz 1/2.5/6.3/16 kHz |
| Talkover | - |
| Phantom power | +48 V |
| Crossfader | - |
| Media player | - |
| Amplifier | 2 x 475 W/4 Ω 2 x 260 W/8 Ω 1 x 900 W/8 Ω (bridged) |
| Power supply | ∿ 230 V/50 Hz/1,250 VA |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 1,250 VA |
| Operating voltage (possible alternative) | - |
| Power supply (possible alternative) | - |
| Admiss. ambient temp. | 0-40 °C |
| Width | 465 mm |
| Height | 150 mm |
| Depth | 395 mm |
| Rack spaces, RS | - |
| Weight | 8.3 kg |
