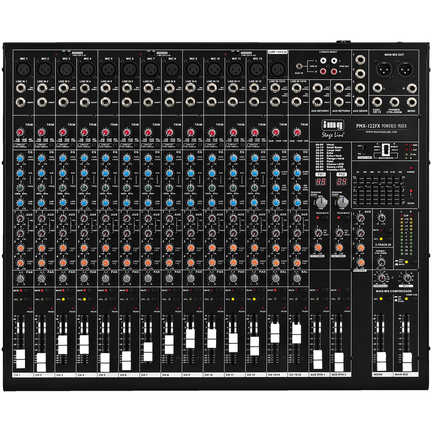

PMX-122FX Powermixer
8.295,00 kr.
Varenummer: 20.2870
Powermixer, 2 x 475 W, 4 Ω, med digital forstærker og 2 DSP-effektenheder.
- Mixer og digital forstærker i metalkabinet
- 12 monoindgange, med gain, 3-vejs equalizer med semiparametrisk mellemtone, low cut og pan kontrol
- 2 stereoindgange, med gain, 4-vejs equalizer og balance
- 2 x DSP, hver med 100 forskellige effekter, fx reverb, hall, ekko og multieffekter
- Indbygget, justerbar kompressor/limiter
- Justerbar stereo aux return indgange og FX send udgange
- Control room funktion
- Inserts til monoindgange
- Udgang til optager og indgang til tape
- +48 V phantom strømforsyning kan tilsluttes for hver indgangsgruppe
- Justerbar hovedtelefonudgang
- 7-bånds grafisk equalizer
- Stereo LED level display
- Tilslutning for svanehalslampe GNL-304, GNL-305 eller GNL-314
TEKNISKE DATA: No. of channels 12 No. of inputs 27 Mic input 0.5 mV, bal., 12 x 3-pole XLR Line input 8 mV, bal. (stereo), 2 x 6.3 mm jack L/R 2 mV, bal. (mono), 12 x 6.3 mm jack
CD input - Phono input - Tape (play) 60 mV, 1 x RCA L/R Aux input 60 mV, bal., 2 x 6.3 mm jack L/R Insert input 80 mV, 12 x 6.3 mm jack Effect return - Master output 1.5 V, bal., 1 x 3-pole XLR L/R Record output - Monitor output - Booth output - Aux output 10 V, 4 x 6.3 mm jack Insert output - Effect send - Control room 10 V, stereo, 1 x 6.3 mm jack Tape (rec) 680 mV, 1 x RCA L/R Headphones ? 8 Ω, 1 x 6.3 mm jack Gooseneck lamp - WiFi - USB - Bluetooth - Frequency range 20-20,000 Hz THD < 0.04% S/N ratio 89 dB Crosstalk -63 dB Equalizer bass ±15 dB/80 Hz Equalizer midrange ±15 dB/100-8,000 Hz (mono channels) ±15 dB/500 Hz (stereo channels)
±15 dB/3 kHz (stereo channels)
Equalizer treble ±15 dB/12 kHz equalizer ±15 dB, 63/160/400 Hz 1/2.5/6.3/16 kHz
Talkover - Phantom power +48 V Crossfader - Media player - Amplifier 2 x 475 W/4 Ω 2 x 260 W/8 Ω
1 x 900 W/8 Ω
Power supply ∿ 230 V/50 Hz/1,250 VA Mains voltage ∼ 230 V Mains frequency 50 Hz Power consumption, operation 1,250 VA Operating voltage (possible alternative) - Power supply (possible alternative) - Admiss. ambient temp. 0-40 °C Width 545 mm Height 145 mm Depth 465 mm Rack spaces, RS - Weight 10.5 kg
