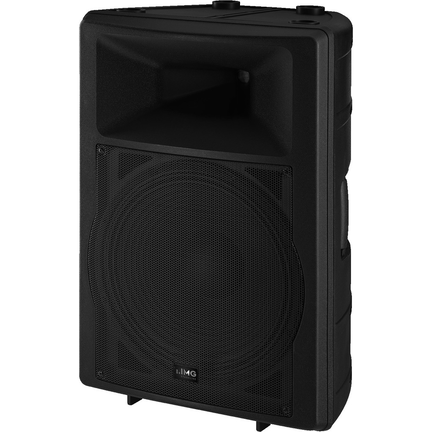

PAB-115MK2 PA-højttaler 600Wmax

DJ og PA højttalersystem, 600 W, 8 Ω



• Full range system med høj ydeevne og høj effekt
• Robust plastikkabinet
• 38 cm (15") basenhed med trykstøbt aluminiumschassis
• 25 mm (1", 44 mm voice coil) horn
• Basreflekssystem
• Velegnet til mange formål og med forskellige monteringsmuligheder
• M8 gevindindsats (2 i toppen, 1 i bunden)
• 2 x SPEAKON, ind/ud
• Flange til montering på stativ og bærehåndtag
• Beskyttelsespose PAB-115BAG kan købes separat

• TEKNISKE DATA:
  Active/passive	passive
  Transmission method	Cables
  Total output power	-
  Power rating (RMS)	-
  Total power rating	600 W
  Power rating (RMS)	300 W
  Impedance	8 Ω
  Frequency range	48-20,000 Hz
  THD	-
  S/N ratio	-
  Input signal	-
  System	15/2 full range
  Full range speaker	-
  Bass speaker	38 cm (15") bass speaker
  Midrange speaker	-
  Tweeter	25 mm (1", 44 mm voice coil) horn tweeter
  Number of speakers	2
  Speaker size	38 cm (15")
  Sensitivity	99 dB/W/m
  Max. rated SPL	124 dB
  Radiation angle, horizontal	-
  Radiation angle, vertical	-
  Features	-
  Housing material	plastic
  Colour	black
  Mounting device	M8 threaded inserts, stand sleeve
  Protected against ball rebound	-
  Protection class	-
  Admiss. ambient temp.	0-40 °C
  Power supply	-
  Dimensions	447 x 685 x 355 mm
  Width	447 mm
  Height	685 mm
  Depth	355 mm
  Weight	19.46 kg
  Inputs	1 x SPEAKER
  Outputs	1 x SPEAKER, par. out
  Replacement voice coil	PAB-115/VC
  Other features	-
  Accessories	PAB-115BAG
