NAC-3MPB1 PowerCon t/230V
29,95 kr.
Varenummer: 34.8780
Varen er på lager Levering 1-2 hverdage

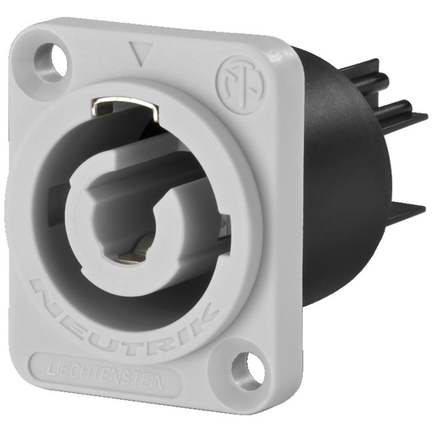

NEUTRIK POWERCON panel jack
- For mains connection up to ∿ 250 V/20 A
- Version for mains output
- Connections for ground, phase and neutral conductor
- Self-extinguishing according to UL 94V-0
| TEKNISKE DATA: | |
| Description | panel jack |
| Type | NEUTRIK POWERCON |
| Quantity | 1 |
| Features | latching device, all-insulated contacts |
| Colour/colour coding | grey/black |
| Power rating | ∿ 250 V/20 A |
| Insulating resistance | > 100 MΩ |
| Dielectric strength | DC 4 kV |
| Certification | UL, cUL, VDE, Electroswiss |
| Pole number | 2+PE |
| Cable inlet | - |
| Suitable cable cross section | - |
| Connection | blade terminals, 4.8 mm |
| Strain relief | - |
| Cable bending protection | - |
| Stereo | - |
| Mono | - |
| Switches | - |
| Material | silver-plated bronze contacts, plastic |
| Central fixing | - |
| Contact type | - |
| No. of contacts | - |
| Contact width | - |
| Contact distance | - |
| Admiss. ambient temp. | -30-+80 °C |
| Dimensions | 26 x 31 x 37.2 mm |
| Diameter | - |
| Length | 37.2 mm |
| Weight | 12 g |
| Other features | - |
