NAC-3FX-W-TOP PowerCon t/230V
64,95 kr.
Varenummer: 03.4163
Varen er på lager Levering 1-2 hverdage

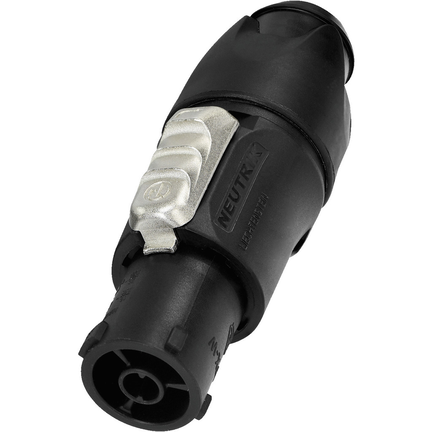

NEUTRIK POWERCON True1 TOP indbygget stik
Overholder sikkerhedskravene i IEC 60320, VDE-certificeret
Til nettilslutning op til ≥ 250 V/16 A
Tilslutninger til jord-, fase- og neutralleder, kan stikket tilsluttes under belastning
Selvslukning i henhold til UL 94V-0
Beskyttelsesklasser IP65
| TEKNISKE DATA: | |
| Description | inline jack |
| Type | NEUTRIK POWERCON TOP |
| Quantity | 1 |
| Features | latching device |
| Colour/colour coding | black |
| Power rating | ∿ 250 V/16 A |
| Insulating resistance | > 100 MΩ |
| Dielectric strength | DC 4 kV/∿ 2.8 kV |
| Certification | UL, VDE |
| Pole number | 2+PE |
| Cable inlet | 6-12 mm |
| Suitable cable cross section | - |
| Connection | - |
| Strain relief | yes |
| Cable bending protection | - |
| Stereo | - |
| Mono | - |
| Switches | - |
| Material | silver-plated bronze contacts, plastic |
| Central fixing | - |
| Contact type | - |
| No. of contacts | - |
| Contact width | - |
| Contact distance | - |
| Admiss. ambient temp. | -30-+80 °C |
| Dimensions | Ø 26.5 mm x 77-80 mm |
| Diameter | - |
| Length | - |
| Weight | 33 g |
| Other features | - |
