NAC-3FCHC PowerCon t/230V
159,00 kr.
Varenummer: 34.8380
Varen er på lager Levering 1-2 hverdage

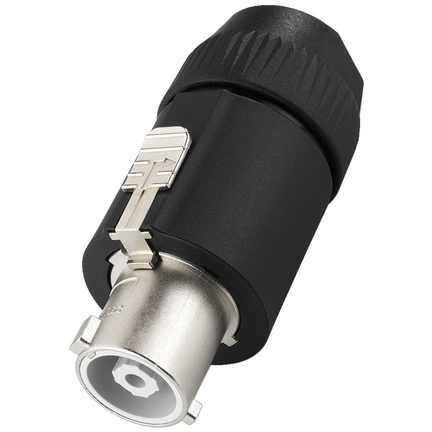

NEUTRIK POWERCON-stik
For nettilslutning med en høj effekt på op til ∿ 250 V/32 A
Skruetilslutninger til jord-, fase- og neutralleder
Til kabelkerner: 2,5-6 mm2
Robust version med låseenhed og kabelindgang med selvjusterende klemmer
TEKNISKE DATA: | |
Description | plug |
Type | - |
Quantity | 1 |
Features | latching device |
Colour/colour coding | black |
Power rating | ∿ 250 V/32 A |
Insulating resistance | > 10 GΩ |
Dielectric strength | DC 4 kV/∿ 2.8 kV |
Certification | VDE, UL, cUL and JET |
Pole number | 2+PE |
Cable inlet | 8-20 mm |
Suitable cable cross section | - |
Connection | screw terminals |
Strain relief | yes |
Cable bending protection | - |
Stereo | - |
Mono | - |
Switches | - |
Material | silver-plated bronze contacts, plastic |
Central fixing | - |
Contact type | - |
No. of contacts | - |
Contact width | - |
Contact distance | - |
Admiss. ambient temp. | -25 °C to +70°C |
Dimensions | - |
Diameter | - |
Length | - |
Weight | 72 g |
Other features | - |
