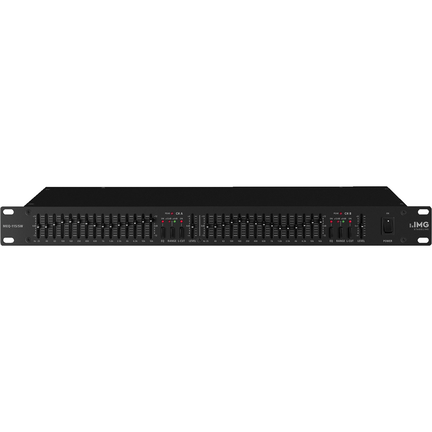

MEQ-115/SW Equalizer
1.195,00 kr.
Varenummer: 24.4350
Varen er ikke på lager forventet ankomst uge 45
Grafisk equalizer
- 2-kanals version, 2 x 15 frekvensbånd af
2/3 oktav
- ±6 eller ±12 dB
- Peak LED
- Low cut filter
- Total volumenkontrol
- Bypass og ground lift
- Valg af frekvensbånd via centre click
- Indgange og udgange via 2 x XLR og
2 x 6,3 mm jack
| TEKNISKE DATA: | |
| Description | graphic equalizer |
| Frequency range | 20-20,000 Hz |
| Control range | switchable ±6/±12 dB |
| Control frequencies | 2 x 25/40/63/100/160/250/400/630 Hz/ 1/1.6/2.5/4/6.3/10/16 kHz |
| Input signal | 0.775 V |
| Input sensitivity | - |
| Input impedance | 50 kΩ |
| Output signal | 0.775 V |
| Output impedance | 600 Ω |
| Gain | - |
| Phantom power | - |
| Compression | - |
| Gate ratio | - |
| Crossover frequency | - |
| High-pass filter | - |
| Low cut | 20 Hz/-3 dB |
| Transmission ratio | - |
| S/N ratio | 66 dB |
| Channel separation | - |
| THD | < 0.1% |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | ∿ 230 V/50 Hz/10 VA |
| Dimensions | 482 x 44.5 x 165 mm, 1 RS |
| Weight | 2.5 kg |
| Inputs | 2 x XLR, 2 x 6.3 mm jack |
| Outputs | 2 x XLR, 2 x 6.3 mm jack |
| Other features | - |
