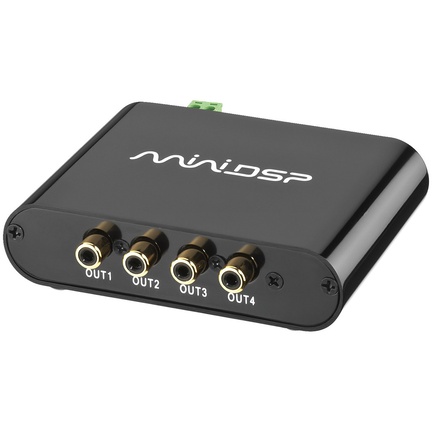

MDSP-24 Mini DSP
1.145,00 kr.
Varenummer: 11.2310
Varen er Ikke på lager ukendt leveringstidspunkt.
Digital HD signal processor (DSP), i kompakt kabinet, med 2 analoge indgange og 4 analoge udgange.
- AD/DA konverter, 24 bits
- Sampling rate: 48 kHz
- 2 phono-indgange (0,9 V/2 V)
- 4 phono-udgange (0,9 V)
- Programmering og administration via mini USB interface og styresoftware (Windows* XP/Vista/7, Mac OS X Intel)
- Følgende parametre kan justeres via styresoftware (rabatkupon medfølger):
- Filtre: high-shelf, low-shelf, high-pass, low-pass
- Grafisk equalizer
- Parametrisk equalizer
- Matrix mixer
- Volumen, mute, polaritet
| TEKNISKE DATA: | |
| Description | digital signal processor (DSP) |
| Frequency range | - |
| Control range | - |
| Control frequencies | - |
| Input signal | 0.9 V/2 V |
| Input sensitivity | - |
| Input impedance | - |
| Output signal | 0.9 V |
| Output impedance | - |
| Gain | - |
| Phantom power | - |
| Compression | - |
| Gate ratio | - |
| Crossover frequency | - |
| High-pass filter | software |
| Low cut | software |
| Transmission ratio | - |
| S/N ratio | - |
| Channel separation | - |
| THD | - |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | USB or DC 4.5-24 V via optional power supply |
| Dimensions | 107 x 30 x 96 mm |
| Weight | 155 g |
| Inputs | 2 x RCA |
| Outputs | 4 x RCA |
| Other features | - |
