FXBAR-5SET LED partysæt

3.495,00 kr.
Varenummer: 38.7750

LED-lyseffekt indstillet

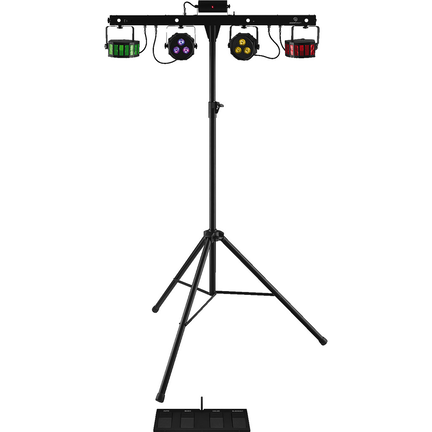

Lysstang med RG-laser (klasse 2M laser), 2 x roterende LED derby, 2 x LED spotlight og 4 x integreret hvid LED-strobe. På grund af sin lave vægt er dette lette effektsæt ideel til mobile applikationer.
Specifikationer lyseffekt enheder:

Tilføj til kurv
  • RG laser with 2 x red laser diode (100 mW, 650 nm) and green (30 mW, 532 nm)
  • LED derby with 1 x RGB LED, 6 W
  • LED spotlight with 3 x RGB LED, 3 W, beam angle: 13°
  • LED strobe with 4 x white LED, 1 W, beam angle: 8°

  • LED derbies and LED spotlights can be adjusted individually and repositioned
  • Operating modes: automatic, music-controlled, master/slave and DMX
  • DMX control function for 27, 9, 5 or 3 channels, selectable
  • 37 integrated show programs (include all of the 4 effect units) in automatic mode and music-controlled mode
  • Convenient operation via supplied wireless foot controller with 4 foot pedals and infrared remote control
  • Control panel with LED display for addressing and preadjustments
  • Black lacquered metal control unit
  • Steel lighting stand, height adjustable in 6 steps (max. height: 2.5 m), with locking pin
  • Supplied with nylon transport bag for control unit with pre-assembled LED effect units, wireless foot controller, connection cable and transport bag for lighting stand
  • Power supply: ∿ 230 V/50 Hz/85 VA
  • Dimensions: 1,180 x 320 x 80 mm (control unit with assembled LED light effect units)
  • Weight: 11 kg

Class 2 M lasers: no need to appoint a laser safety officer. An approval is not required.
Class 2M Lasers
Class 2M lasers can be used without additional protective measures if it is ensured that the application requires neither intentional looking into the light for periods longer than 0.25 sec. (blink reflex), nor repeated looking into the laser beam or its mirrored reflection.
Risks comparable to class 3R or class 3B lasers may occur if light-collecting instruments like lenses or magnifying glasses are used.
tastenwelt 2016/06
“A practical lighting set available at an attractive price. For entertaining music performances with 80-100 guests, you would rather set up 2 light bars to achieve beautiful dynamics. Due to automatically run programs, this set is interesting for musicians who want to control a system without great effort.”

Descriptionlight effect set
Light source2 laser diodes red: 650 nm and green: 532 nm (RG laser)

1 x RGB LED (LED derby)

3 x RGB LED (LED spotlight)

4 x LED, white (LED strobe)

Wattage1 x 100 mW (laser diode: red), 1 x 30 mW (laser diode: green)

1 x 6 W (LED derby)

3 x 3 W (LED spotlight)

4 x 1 W (LED strobe)

Luminous flux-
Luminous intensity-
Colour temperature-
Beam angle13° (LED spotlight)

8° (LED strobe)

Rotation angle (pan)-
Rotation angle (tilt)-
Control optionsDMX, microphone, master/slave, automatic
No. of DMX channels27/9/5/3
Colour wheel-
Gobo wheel-
Strobe effectyes
Dimmer function-
Protective class-
Admiss. ambient temp.0-40 °C
Operating voltage∼ 230 V
Power consumption, operation85 VA
Width1,180 mm
Height320 mm
Depth80 mm
Weight11 kg
Connections3-pole XLR (DMX in),

3-pole XLR (DMX out)
