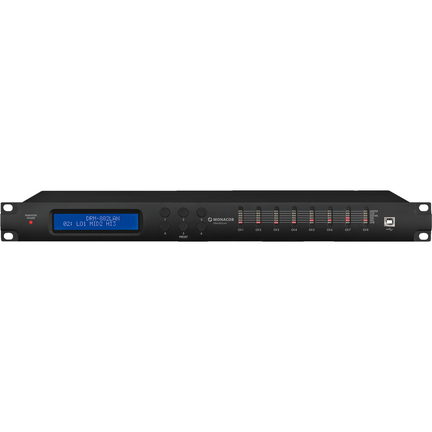

DRM-882LAN Digital router 8-kanals

13.495,00 kr.
Varenummer: 17.9250

Varen er på lager  Levering 1-2 hverdage

Digital 8x8 matrix router


1
+
Tilføj til kurv
  • 8 inputs and 8 outputs (plug-in screw terminals, switchable mic/line, balanced)
  • +48 V phantom power
  • User-defined routing of the inputs to the outputs
  • The level of each routed input can be adjusted per assigned output (individual output mix)
  • Up to 32 devices can be managed via software
  • A/D converter: 4 x 24 bits, D/A converter: 1 x 24 bits
  • Extensive signal processing and monitoring, e.g. frequency shift feedback eliminator, parametric 5-band equalizer with peak and shelving filters, variable low-pass/high-pass filters - optionally with Bessel, Butterworth or Linkwitz-Riley characteristics, RMS compressor, peak limiter, selectable phase, delay
  • Integrated auto mixer
  • 6-fold LED status cluster for each channel
  • 6 user presets can be accessed directly
  • Link feature for simultaneously changing the settings of several channels
  • Stereo mode for the channels 1/2, 3/4, 5/6 and 7/8
  • Dot matrix display with 2 x 24 characters
  • Remote control via USB, RS-485 or TCP/IP LAN
  • Real-time remote control via software
  • Lock mode for front panel control
  • Individual room control via optional wall-mounted remote control panel DRM-882WP or DRM-882WPX
  • Robust steel housing with aluminium front panel
  • 482 mm (19") rack installation, 1 RS
TEKNISKE DATA:
Descriptionmatrix router
Frequency range20-20,000 Hz
Control range-
Control frequencies-
Input signal6.2 V max.
Input sensitivity-
Input impedance-
Output signal6.2 V max.
Output impedance-
Gain-
Phantom power-
Compression-
Gate ratio-
Crossover frequency70 Hz-1 kHz, 12 dB/oct.,

910 Hz-8 kHz, 12 dB/oct.,

subwoofer: 80/120 Hz, 24 dB/oct.

High-pass filter-
Low cut-
Transmission ratio-
S/N ratio> 104 dB
Channel separation-
THD< 0.005%
Admiss. ambient temp.0-40 °C
Power supply∿ 230 V/50 Hz/20 VA
Dimensions482 x 44 x 250 mm, 1 RS
