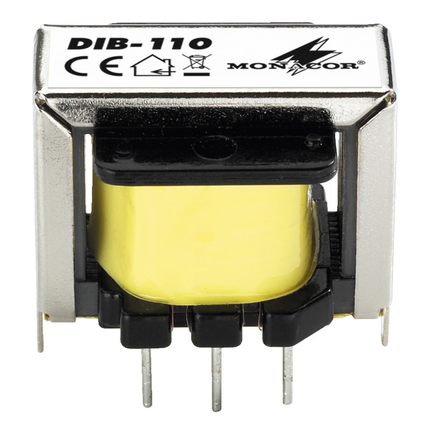

DIB-110 Linietransformator
95,00 kr.
Varenummer: 21.2140
Varen er på
lager
Levering 1-2 hverdage
DI transformer 10:1
- Unshielded version with PCB connections
- Wideband version
- Change from unbalanced to balanced and vice versa
- Galvanic isolation to avoid/eliminate hum loops
- Max. input voltage: 5 V (1% THD/40 Hz)
| EKNISKE DATA: | |
| Description | DI box |
| Frequency range | 15-30,000 Hz |
| Control range | - |
| Control frequencies | - |
| Input signal | - |
| Input sensitivity | - |
| Input impedance | 47 kΩ, unbal. |
| Output signal | - |
| Output impedance | 600 Ω, bal. |
| Gain | - |
| Phantom power | - |
| Compression | - |
| Gate ratio | - |
| Crossover frequency | - |
| High-pass filter | - |
| Low cut | - |
| Transmission ratio | 10:1 |
| S/N ratio | - |
| Channel separation | - |
| THD | - |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | - |
| Dimensions | 25 x 24 x 21 mm |
| Weight | 28 g |
| Inputs | PCB connections |
| Outputs | PCB connections |
| Other features | - |
| Width | 25 mm |
| Height | 24 mm |
| Depth | 21 mm |
| Length | - |
| Rack spaces, RS | - |
| Weight | 0.028 kg |
