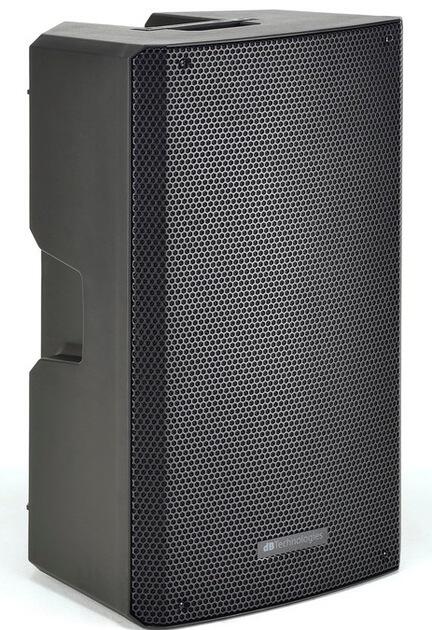

DBTECHNOLOGIES AKTIV HØJTTALER SYA 15

Technical Data

Speaker Type

3-Way Active Speaker

Acoustical data

Freq. Response (-10dB)

48 – 18.000 Hz

Max SPL (1 m)

128 dB

HF

1” CD, 1,35”v.c

LF

15”, 2,5” v.c

Dispersion

90”x60”

Crossover Frequency

1800 Hz (24 dB/oct.)

Amplifier

Amp Technology

Class D(LF)+ Class AB(HF)

Peak Power

800 W

Processor

Controls

1xVolume, 1xslide switch mic/line

Indicators

Power on/signal/limiter LEDs

Controller

DSP 20/56 bit

AD/DA Converter

24 bit/48 Hz

Systems Presets

Playback, Flat, Bass Boost, Wedge

Limiter

Peak, RMS, Thermal

Advanced DSP Functions

Linear Phase FIR Filters

Input

Signal Input

1 x Combo(XLR/Jack)

Mic/Line

1 x XLR/TRS

Bluetooth Input

1 x Bluetooth receiver

Signal Output

1 x XLR male (LINK/MIX)

Mechanics

Housing

Polypropylene

Handles

3 (2 on side 1 on top)

Angles Up

Monitor Use 45”

Pole Mount

36 mm, double positioning

Dimensions (WxHxD)

430 x 722 x 402 mm

Weight

19,3 kg
