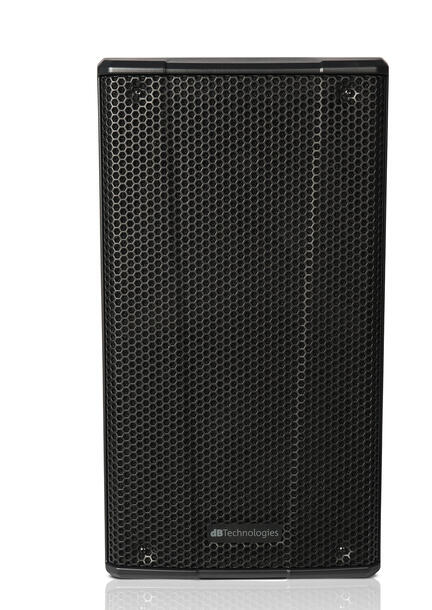

DBTECHNOLOGIES AKTIV HØJTT
Varen er på lager levering 1-2 hverdage.
Maksimal effektivitet op til 121 dB SPL Professionel akustisk ydeevne Innovativt horndesign til ensartet og udvidet dækning Kompakt fjervægt Rent og moderne design.
Robust højtaler der er velegnet til de mindre arrangementer.
Udstyret med en klasse D forstærker med Intuitive DSP forud indstillinger.
Speaker Type |
| 2-Way Active Speaker |
Acoustical data |
|
|
Usable Bandwidth [-10dB] |
| 55 – 20.000 Hz |
Frequency Response [-6dB] |
| 62 – 19.600 Hz |
Max SPL |
| 121 dB |
Type HF |
| Compression Driver |
HF voice coil |
| 1” |
LF |
| 10” |
LF voice coil |
| 1.5” |
Crossover Frequency |
| 2300 Hz (24dB/oct) |
Horizontal Dispersion |
| Asymmetrical 85” up / 120” down |
Vertical Dispersion |
| 85” |
Amplifier |
|
|
Amp Technology |
| Custom Made |
Amp Class |
| Class-D – Passive cooling (convection) |
Peak Power |
| 260 W |
Processor |
|
|
Controller |
| DSP 28/56 bit / 48 kHz |
Limiter |
| Peak, RMS, Thermal |
Controls |
| Volume, Audio Input Sensitivity, DSP Preset |
Inputs |
|
|
Main Connection |
| VDE |
Signal Input |
| Balanced 1xCombo IN (MIC/LINE) |
Signal Output |
| (Balanced) 1xXLR OUT (LINK) |
Mechnaics |
|
|
Housting |
| Polypropylene |
Grille |
| Full Metal Grille |
Handles |
| 3 (2 on side 1 on top) |
Pole Mount |
| 36 mm |
Dimensions (weith x Height x Depth) |
| 295 x 544 x 283 mm |
Weight |
| 9 kg |
